Printing Data Sheet

Deadline for submitting print data

The final print data must be submitted to us completely and print-ready at least 4 weeks before the first day of the event.

If this deadline falls on a Saturday or Sunday, the Friday before is considered the binding submission deadline.

Please note: A late submission of print data is not possible. We can only guarantee timely production if the data is submitted on time.

PLEASE NOTE: Exhibitors and participants of the 7th Future Battery Forum in Berlin can find the graphic specifications here:

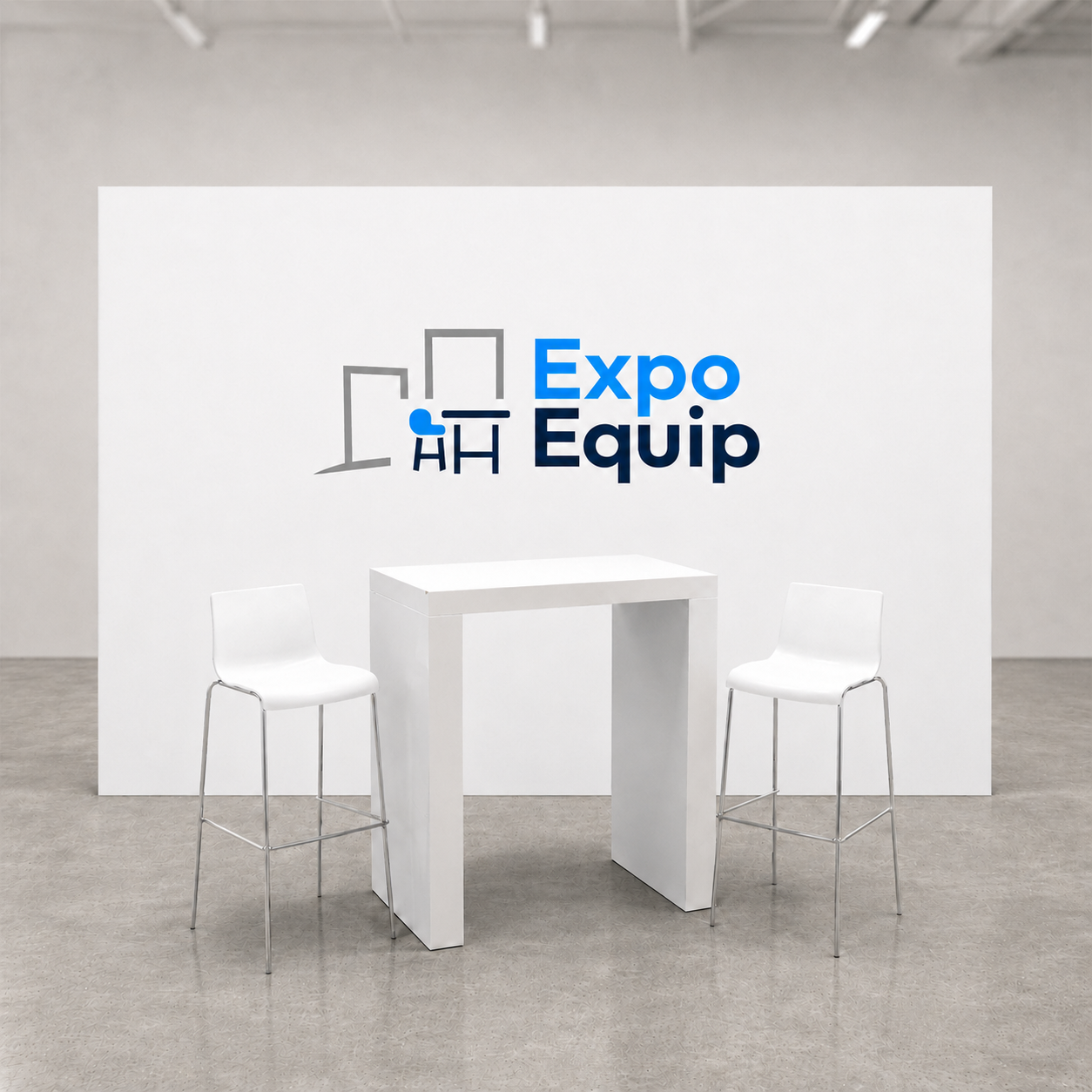

Print and visible dimensions for textile printing in respective booth sizes:

  • 4 sqm: Print dimensions 1,980 x 2,520mm | Visible dimensions 1,940 x 2,480mm
  • 6 sqm / 9sqm: Print dimensions 2,970 x 2,520mm | Visible dimensions 2,930 x 2,480mm
  • 8 sqm / 12 sqm: Print dimensions 3,960 x 2,520mm | Visible dimensions 3,920 x 2,480mm
  • 15 sqm: Print dimensions 4,950 x 2,520mm | Visible dimensions 4,910 x 2,480mm
  • 18 sqm: Print dimensions 5,940 x 2,520mm | Visible dimensions 5,900 x 2,480mm
  • 21 sqm: Print dimensions 6,930 x 2,520mm | Visible dimensions 6,890 x 2,480mm

Panel printing per panel:

  • Direct print 1.0m: Print dimensions W962mm x H2412mm | Visible dimensions W95.0cm x H240cm
  • Direct print 0.5m: Print dimensions: W467mm x H2412mm | Visible dimensions: W45.5cm x H240cm

FBF Graphics Data Sheet

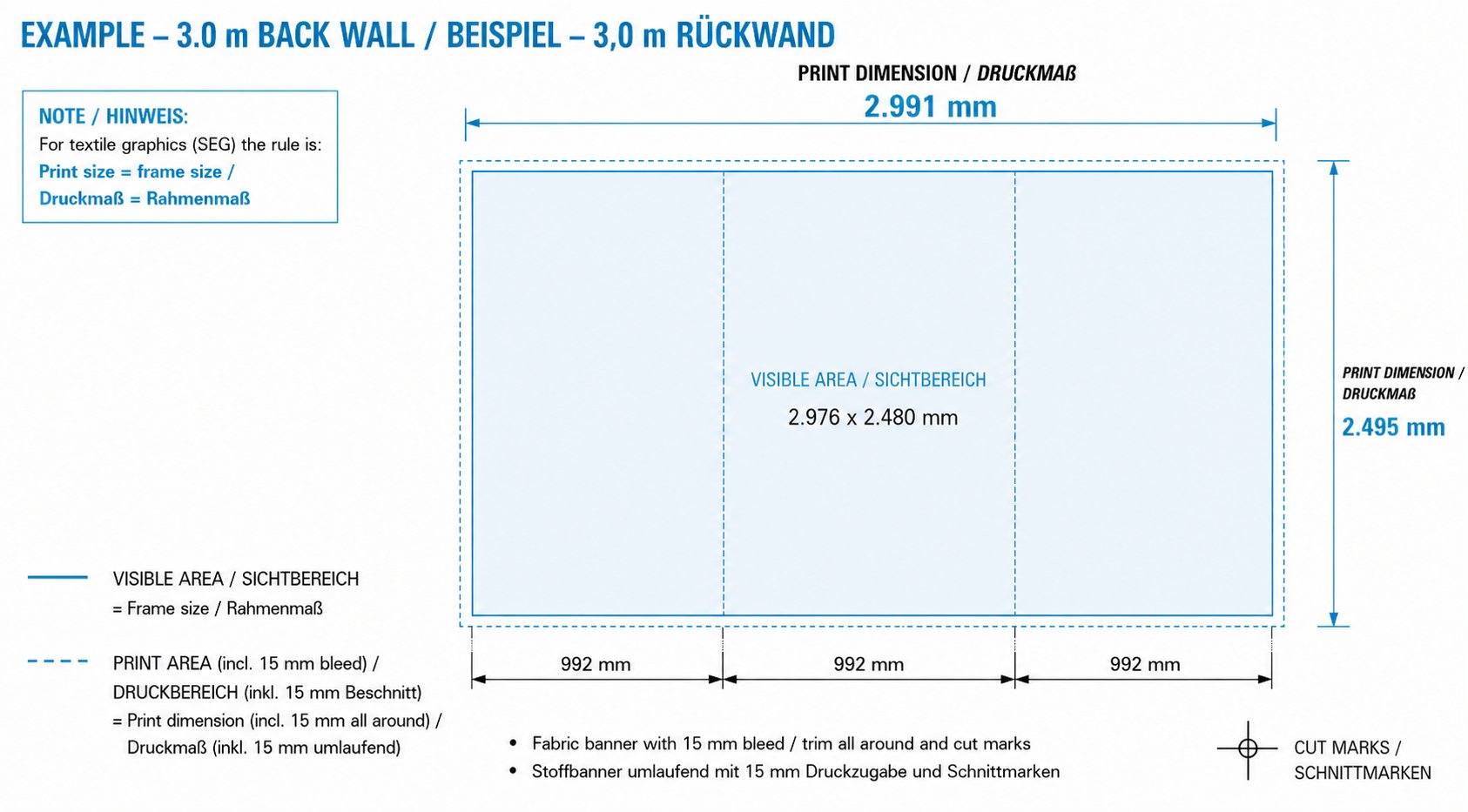

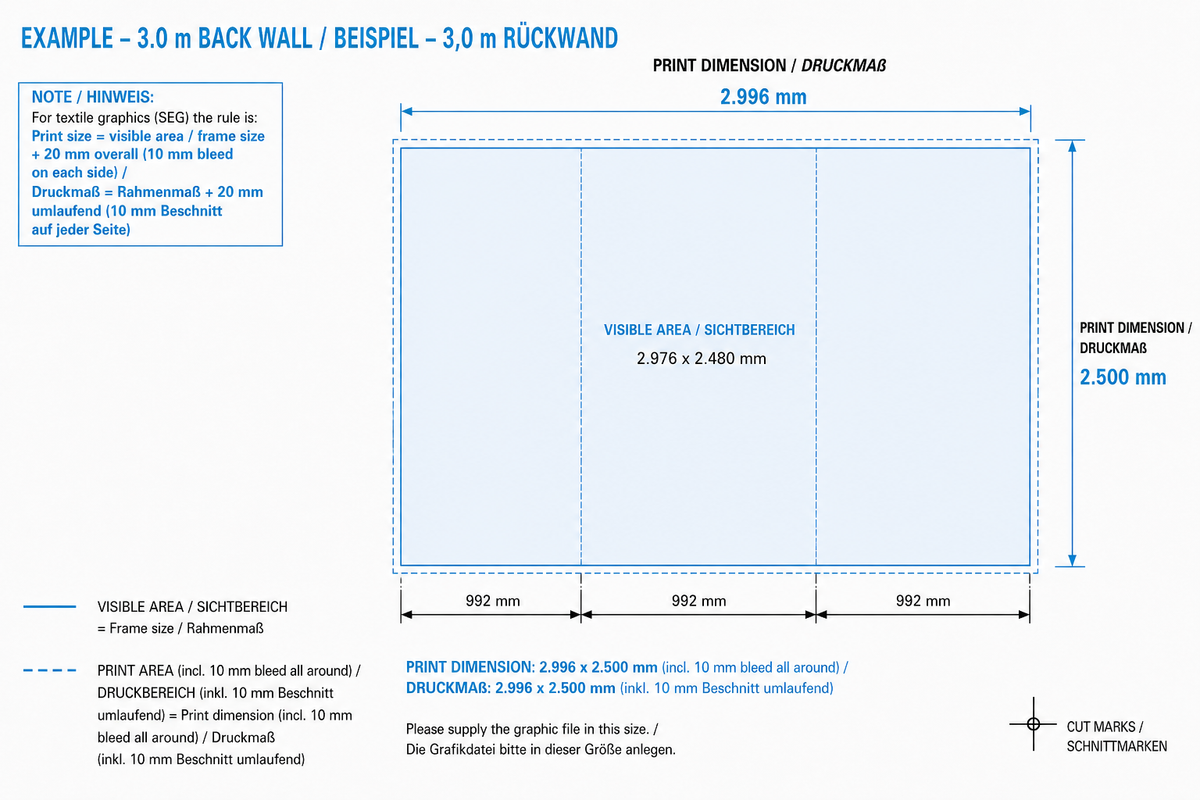

1. Banner Printing Specifications

Print Presets

  • Images at least 100 dpi
  • Graphics and fonts as vector graphics
  • Color mode: CMYK
  • Color profile: ISO Coated v2
  • File format: PDF X3/4
  • Fabric banner with 10 mm print bleed and trim marks all around

Formats to be uploaded per (stand size):

2,004 x 2,500 mm (4 sqm)

2,996 x 2,500 mm (6 sqm and 9 sqm)

3,988 x 2,500 mm (8 sqm and 12 sqm)

4,980 x 2,500 mm (15 sqm)

5,972 x 2,500 mm (18 sqm)

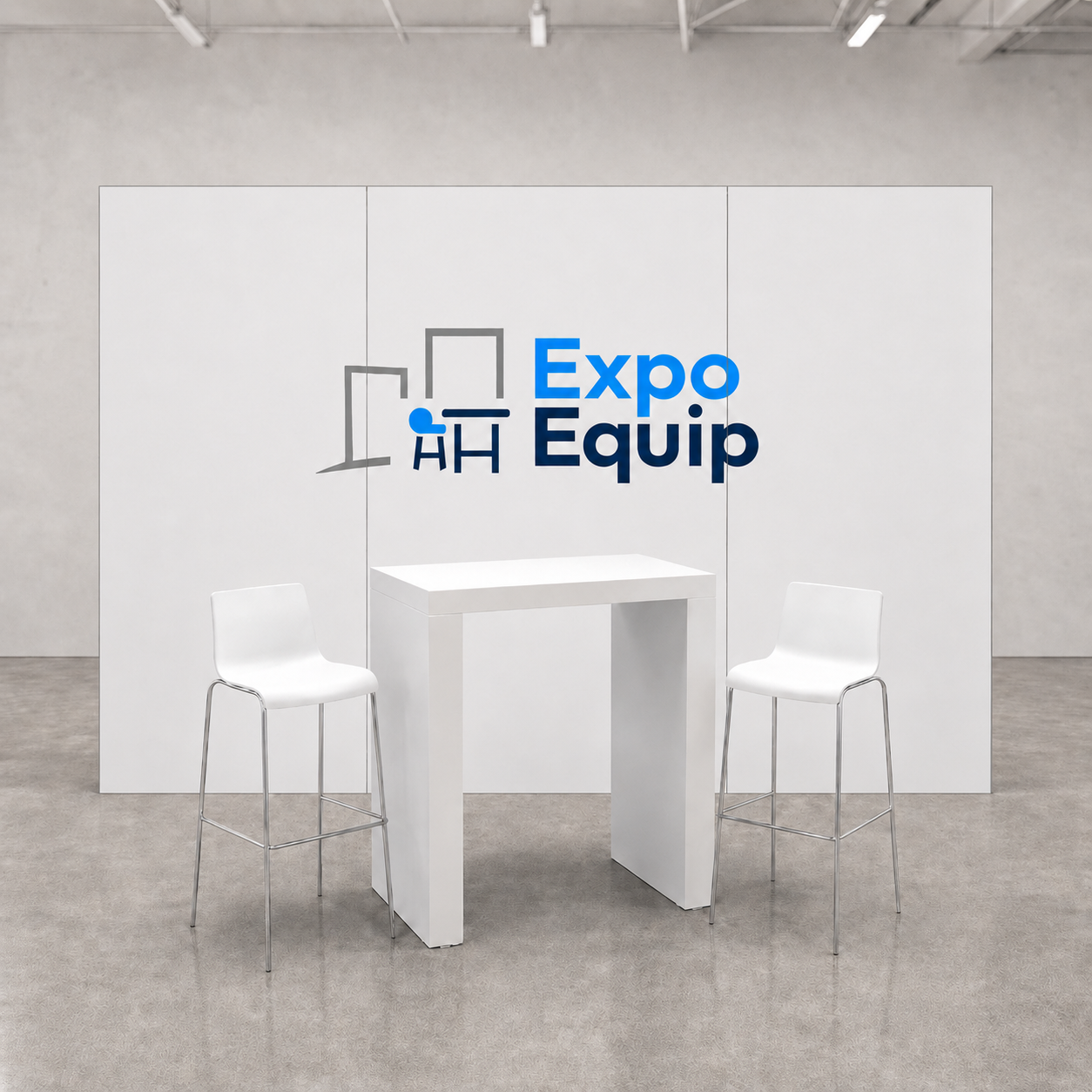

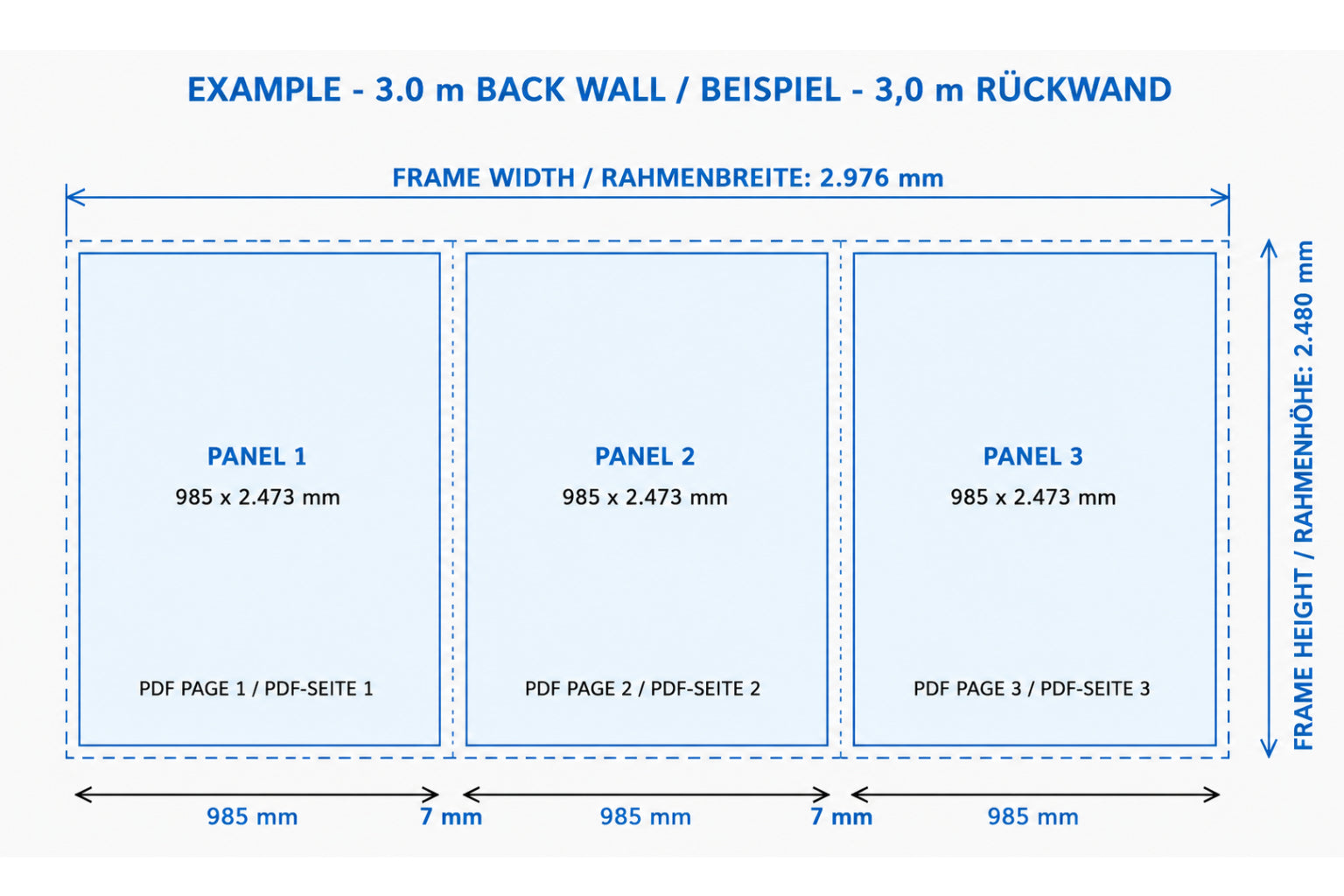

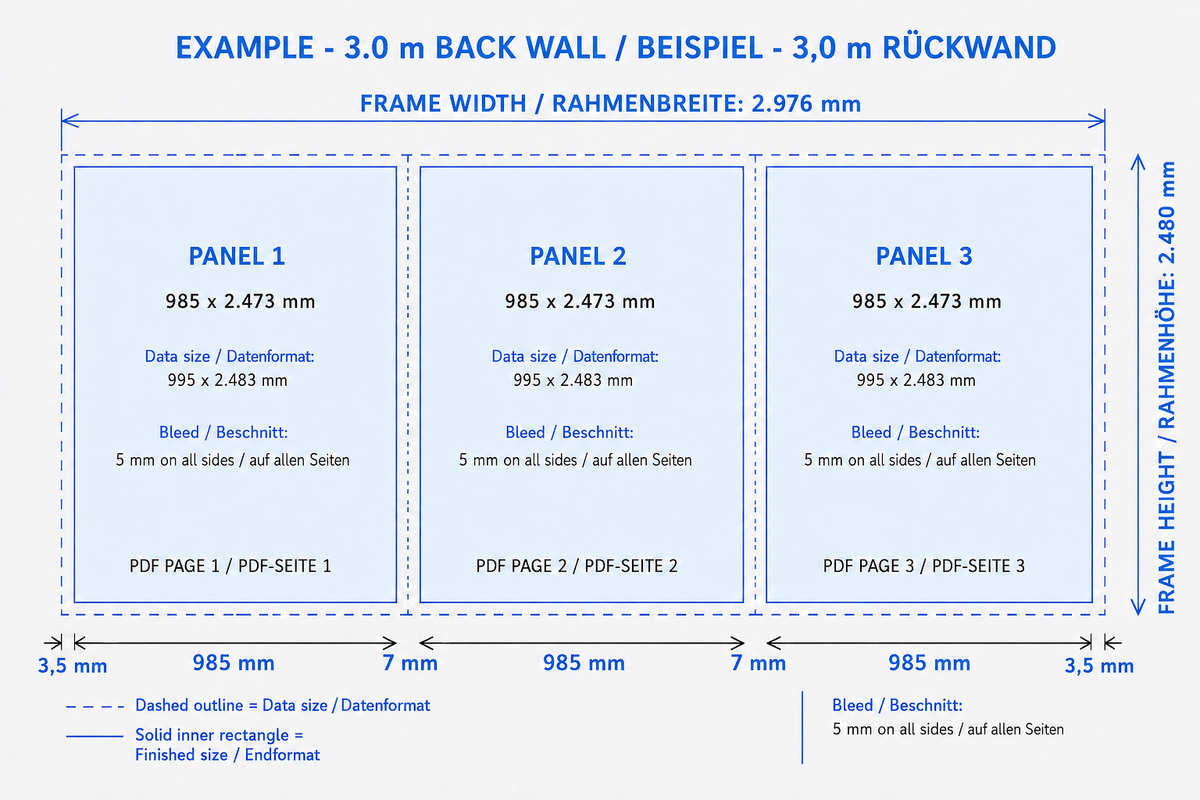

2. Direct-to-plate Printing Specifications (1.0m)

Print Presets

  • Images at min. 100 dpi
  • Graphics and fonts as vector graphics
  • Colour mode: CMYK
  • Colour profile: ISO Coated v2
  • File format: PDF X3/4
  • Place logos and text 20 mm from the edge of the panel
  • Create one PDF page per wall element in the correct order
  • The dimensions per wall element are (W) 985 x (H) 2473 mm

Upload format per panel: 995 x 2483 mm

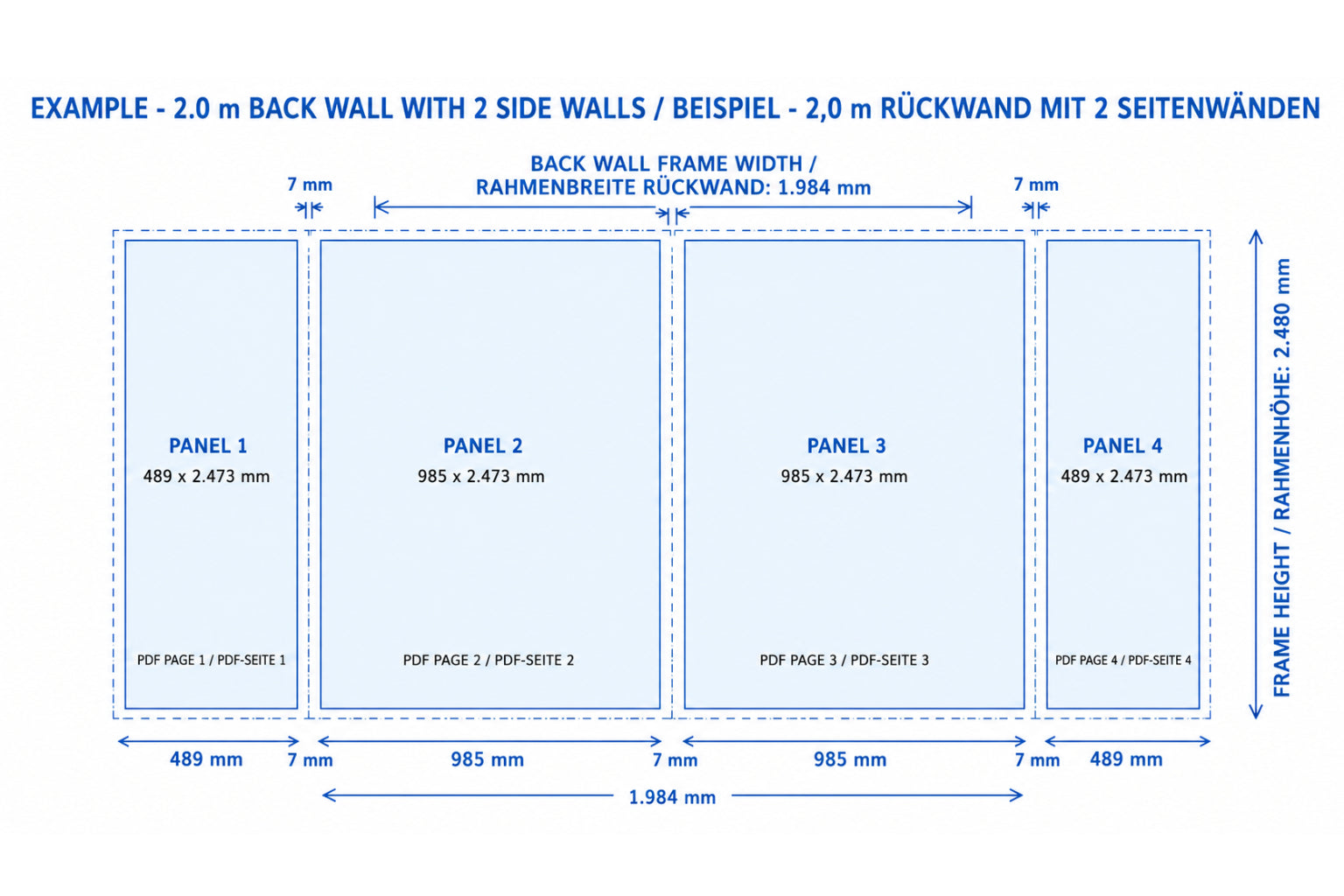

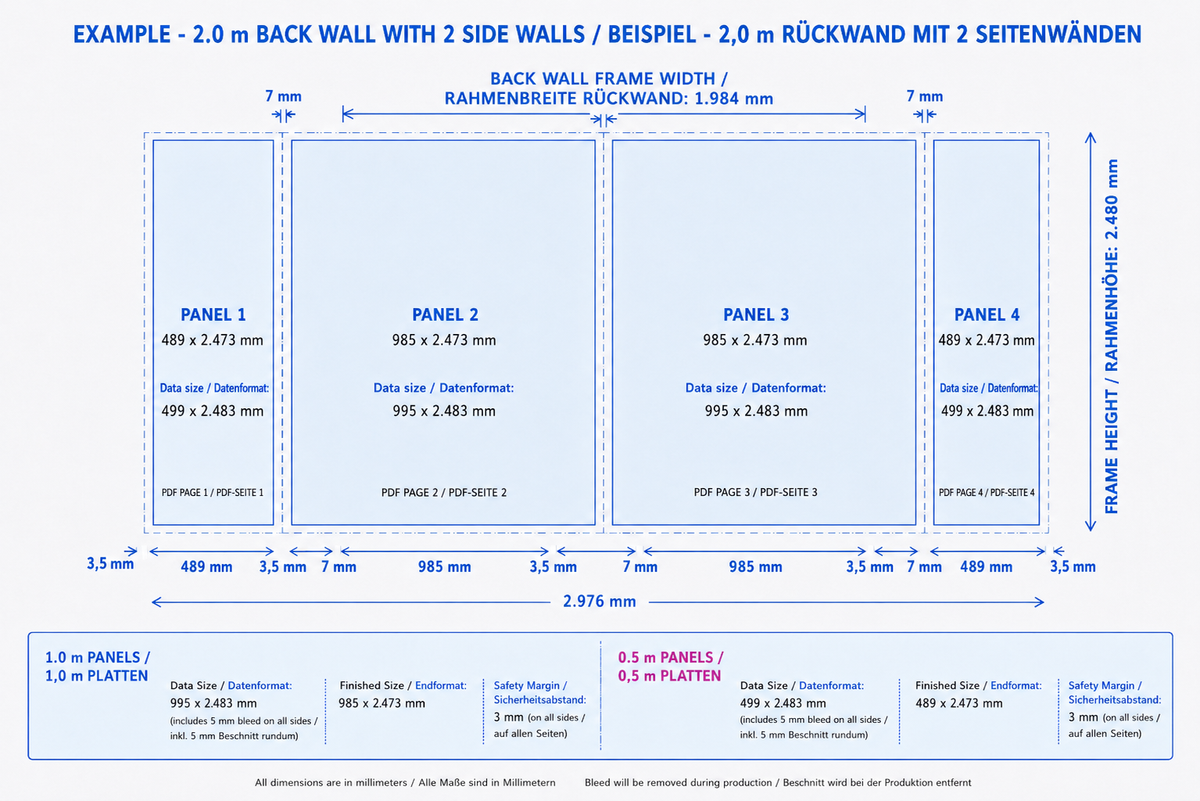

3 direct printing plate specifications (0.5m)

Print Specifications

  • Images at least 100 dpi
  • Graphics and fonts as vector graphics
  • Color mode: CMYK
  • Color profile: ISO Coated v2
  • File format: PDF X3/4
  • Place logos and text 20 mm from the edge of the panel
  • Create one PDF page per wall element in the correct order
  • The dimensions per wall element are (W) 489 x (H) 2473 mm

Upload format per 0.5 m panel: 499 x 2483 mm

Upload format per 1.0 m panel: 995 x 2483 mm





4. Textile Printing for Our Counters

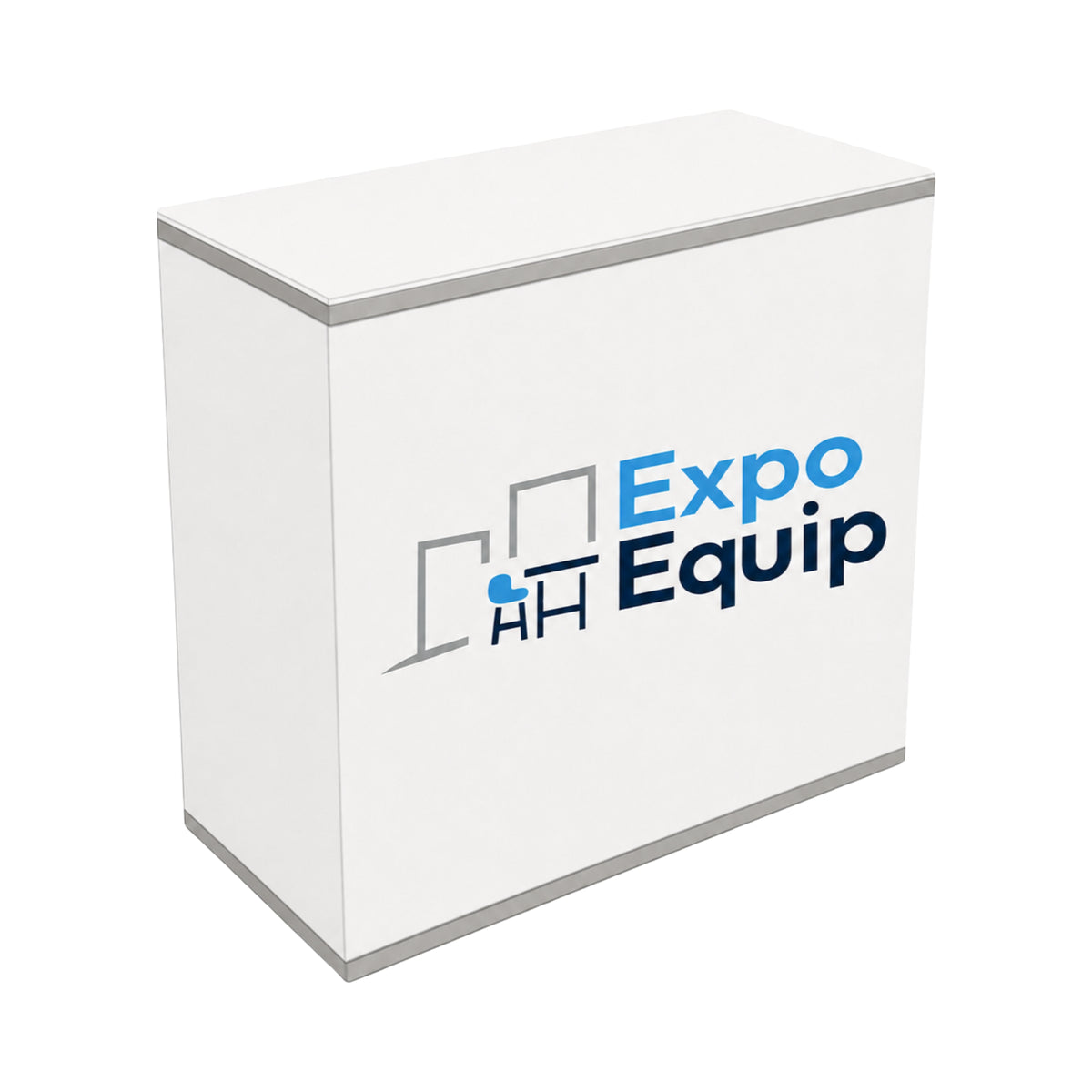

Standard counter

  • Images at least 100 dpi
  • Graphics and fonts as vector graphics
  • Color mode: CMYK
  • Color profile: ISO Coated v2
  • File format: PDF X3/4
  • Fabric banner with 10 mm print bleed all around and trim marks
  • Visible size: 2232 x 992 mm
  • Logos and content with 20 mm Abstand from the edge

Upload format: 2,252 x 1012 mm

Product counter

  • Images at least 100 dpi
  • Graphics and fonts as vector graphics
  • Color mode: CMYK
  • Color profile: ISO Coated v2
  • File format: PDF X3/4
  • Fabric banner with 10 mm bleed all around and trim marks
  • Visible size: 3224 x 992 mm
  • Logos and content with 20 mm distance to the edge

Upload format: 3244 x 1012 mm

5. Plate printing for our counters

PC workstation / mini counter

  • Images at least 100 dpi
  • Graphics and fonts as vector graphics
  • Color mode: CMYK
  • Color profile: ISO Coated v2
  • File format: PDF X3/4
  • Fabric banner with 5 mm bleed all around and trim marks
  • Visible size per plate: 609 x 985 mm
  • Logos and content with 3mm distance from the edge

Upload format per plate: 619 x 995 mm

Standard counter

  • Images min. 100 dpi
  • Graphics and fonts as vector graphics
  • Color mode: CMYK
  • Color profile: ISO Coated v2
  • File format: PDF X3/4
  • Fabric banner all around with 5 mm bleed and crop marks
  • Visible size per plate: 981 x 985 mm
  • Logos and content with 3mm distance to the edge

Upload format for the front plate: 991 x 995 mm

Product counter

  • Images at least 100 dpi
  • Graphics and fonts as vector graphics
  • Color mode: CMYK
  • Color profile: ISO Coated v2
  • File format: PDF X3/4
  • Fabric banner with 5 mm print bleed and crop marks all around
  • Visible size per panel: 981 x 985 mm
  • Logos and content with 3mm distance to the edge

Upload format per front panel: 991 x 995 mm
